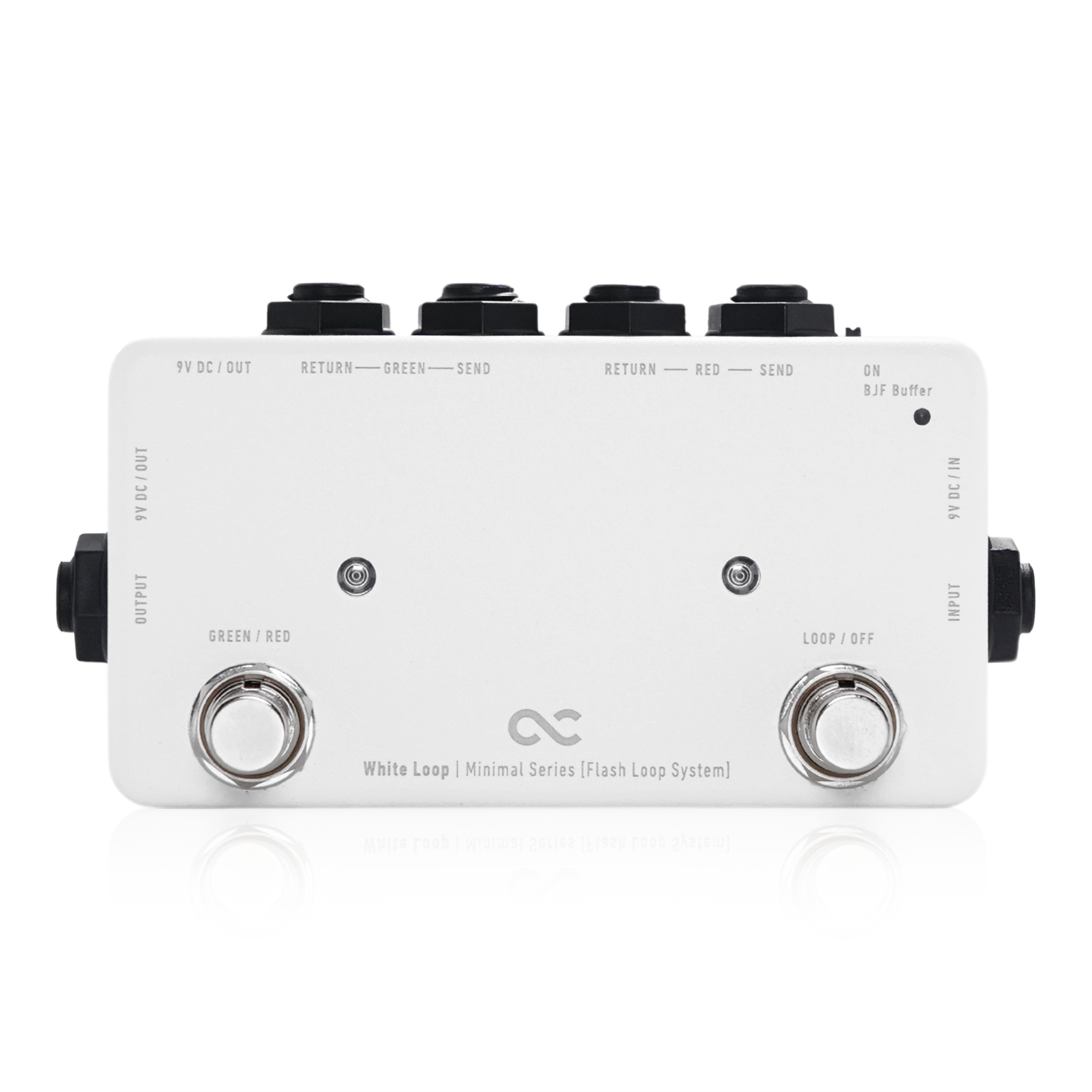

One Control Minimal Series White Loop

OC-M-WL2 w/ BJF Buffer Circuit

Flash Loop w/ 2 DC Outputs

Newly updated design! The One Control Minimal Series White Loop now includes the world-class BJF Buffer circuit, which can be turned on/off for True Bypass operation. The Flash Loop function is what separates the OC-M-WL2 White Loop from many other similar products. What is a “Flash Loop”? Well, the White Loop has two separate loops – RED and GREEN. One switch allows you toggle (or "FLASH") between these two loops. The second switch bypasses both loops. In addition, you can supply power to your effects courtesy of the two DC OUTs.

Overview of the OC-M-WL

• 2-Channel Loop Flash Switcher
• Allows guitarists to quickly toggle between two loops or bypass both

Flash Loop Function:

• Left footswitch toggles between the two (Red & Green) loops.
• Right footswitch bypasses whole pedalboard

THE BJF BUFFER:

This amazing circuit is installed in many of the switching products from One Control. It is one of the most natural-sounding buffer circuits ever created that changes the image people have from using old buffer circuits that degraded the tone of their instruments.

Different Uses:

• AB Switch
• Amp Channel Switcher
• Tuner Output/Mute Switch
• 2x DC outputs to add extra power to your pedalboard
• The White Loop can be used without DC power, however the LEDs will not function.

Different Uses of the Minimal Series White Loop - Explained

The White Loop is a two-loop, true bypass switcher, that allows guitarists to quickly toggle between two loops or bypass booth loops instantly. The left switch toggles between both loops and the right switch will bypass the entire pedal. This is a great tool if you want to have quick channel changing but don't want to buy a large switching system. Just like the Black Loop, two DC outs are included.

Amp Channel Switcher

In addition to doing loop switching the White Loop can also do basic amp channel switching when you aren't using the loops. Simply run an instrument cable from the send or return of the white loop, depending on what amp you are using, and insert the cable into the amps foot-switch input.

AB Switch

The White Loop can also be used as an AB switch with a mute function. Simply plug one amp into RED Ch. SEND and the other amp into GREEN Ch. send at the left switch with toggle between both amps.

Tuner Output/Mute Switch

If you attach nothing to the output then the LOOP/OFF switch, then it will simply act as mute if you connect a tuner to the output so while muting you have the ability to tune your guitar and the tuner will be out of the way of your signal chain.

Weight & Dims of the One Control White Loop OC-M-WL2

• Width:  121mm
• Depth:  66mm
• Height: 49mm
• Weight 390g

Minimal Series – “Sophisticated Functionality”

The One Control Minimal Series eliminates all waste in the manufacturing process of pedals, achieves the most compact size, and consolidates simple but sophisticated functionality. These are pedals that have earned the name Minimal.

Built to last, built to be stepped on, and built to fit anywhere you need them. Purpose-built solutions with exactly what you need, and nothing more. Switching is Easy with One Control!

Make'n Music is proud to be an authorized dealer, as well as the USA Shipping Warehouse for One Control products. Best Selection always in stock and for sale at a great price!

・Minimal Series White Loop with BJF Buffer Manual.pdf
